Butterworth Bandstop Filter Designer

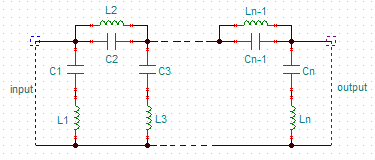

Calculate the L & C values needed for Pi and T topologies.
Enter the center, -3dB bandwidth and system impedance.

Center

GHz
MHz
BW

GHz
MHz
Zo
Ω


*Note Pi implies first pole is shunt
*Note T implies first pole is series
